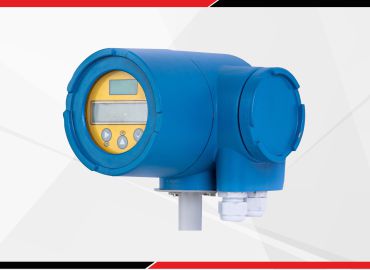

MFM-SIGNAL CONVETER- OEMF20 For OEM’s

Salient features for OEM’s :

  • Weatherproof Circular Transmitter housing , powder painted
  • State of art technology from experienced manufacturers
  • Zero maintenance and High-quality service supported
  • Manufacturer’s warranty against manufacturing defects
  • Zero maintenance and High-quality service supported
  • Fully programmable & Electrically calibrated Electronics
  • Compatible with all types of Magflow heads and Compatibility
  • Fully Indigenously manufactured product
Download product datasheet-pdf


OEM’s can concentrate on Sensor production and calibration onl

  • More Features
  • Specsheet
  • Applications
Operating Power
( Options)		 AC 230Vac +/-15% with Transformer isolation
AC 100Vac to 240Vac with SMPS
DC : 20 to 30 Vdc Power consumption <3VA
Coil current +/- 100mA (For other values , please contact us.)
Max coil resistance 140ohms for 100mA coil current
Coil Drive Switching Frequency at 12.5Hz or 6.25 Hz programmable
Sensitivity standard 60uV per m/sec,
Preamp- Gain special gains possible to change sensitivity figurers, consult us
Signal input from Sensor Input impedance : suitable for liquid> 10uS/cm
Protection against spikes 250V, ( difference mode and common mode w.r.t Earth)
Sensor common is connected to Earth
Damping Time 3 to 99 seconds (programmable)
Electrical Accuracy +/- 0.5% of velocity from 0.5 m/Sec to 10m/sec
Current output 4 to 20 mA in to 600 ohms max, Galvanically isolated 500Vdc to Chassis earth.
RS485 output A & B , Galvanically isolated to 500Vdc from earth and power supply
Operating conditions Operating : 0 to 55 ˚C , Storage : -10 ˚C to 60 ˚CC , Max RH =98% non condensing
Chassis Withdrawable for servicing
Dimensions & Weight Converter chassis as per drawing below
