Portable Ultrasonic Flow Meter

Our Portable Ultrasonic Flow Meters are working for > 7 years.
Locally Manufactured, Local Spares & Consumable support
More than 100 flowmeters in Active use.
Battery operated with Rechargeable Battery.
Built-in Data logger with USB cable.
Expert guidance on site issues & Site support if required.
Useful on water, solvents & on most liquids.
Caters wide range of pipe sizes from 15 mm to 3000 mm by choice of Three types of Transducer sets.

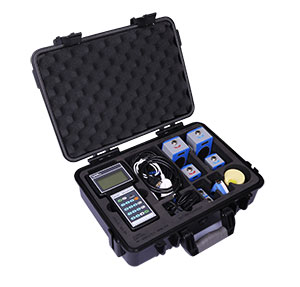

Rugged / compact Carry case for field use, only 6.5 kg, with all necessary accessories.

Using time proven Ultrasonic Transit time flow metering principle TR600 Portable Ultrasonic Flow Meter has below-specifications:
Accuracy	Typically < ±1% above 0.5m/s, Max ±2%.
Velocity	±0.1 to ±32mtrs/s, bi-directional
Pipe Material	All metals, most plastics & lined pipe
Units	Settable Metric or English (U.S.)
Totalizer	7-digit totals for net, positive and negative flow
Liquid Types	Virtually all clean liquids and liquids with minor solids (<10,000ppm). Full pipe Liquid condition needed.
Transducers Site Data	Repeatedly used Setup values can be memorized for quick set-up
Computer Interface	RS232C and USB cable.
Transducer Cable	Standard 2 x 5m long
Power	Internal rechargeable battery. When fully recharged it will last ~ 6 hours of operation. AC Adapter supplied for charging and continuous use.
Data Logger	Over 2000 lines of data
Weight	Hand held unit : ~0.6kg, Full Unit with Carry Case : ~6.5kg
Choice of Three Clamp on Sensors	TS2 & TS2H types for 15mm to 100 mm pipes TM1 & TM1H types for 80mm to 700 mm pipe TL1 type for 300 mm to 3000 mm
Choice of Liquid Temp.	Standard Temp (0 to 70 ⁰C) Extended Temp (-30 to 160⁰C)" add suffix "H"
