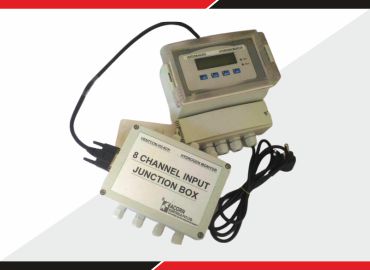

8-Channel Controller

Our Unique Pragmatic Design enables quick & accurate response

Hydrogen detectors from Acorn Credibility (H2SENSE CC2410, H2SENSE 2405 & H2SENSE CC4220Tx)
Two Control relays
Software settable set point
Built-in Timer with settable ON/OFF time for Fan control
Buzzer and LED warnings
RS485 Modbus Protocol

Range of H2concentration	Range : 0 to 4.00 % of H2 Balance Air
Accuracy	+/-1% of input range (does not include Sensor error)
Sample Method	By Catalytic Conv. Type Hydrogen sensor
Operating Temp. Range	-10~55ºC, 96% RH
degree of Protection	IP65
Display Update Period	1 second
Response Time	<10 sec
No. of channel	Single or Eight available options
Relay 1 & 2 Contact Rating	230VAC, max 5A(Non-Inductive), Contacts: SPDT
Alarm Level & Relay /LED’s	2 LEDs RED : <Alarm1 RED : >Alarm2 Alarm1 ON/OFF& Alarm2 ON & OFF levels are user adjustable
Timer Based Relay 1 On/Off setting	OFF time settable from 0 to 9999 minutes / ON time settable 0 to 99 minutes. Green & Yellow (ON) when Timer turns Relay 1ON
Buzzer Alarm	Available with Mute facility
Power Supply	100 VAC to 240VAC, 5VA max
Sensor Life	> 2year
Size (WxLxH)	150x160x120
